5.3   Consistency Controller

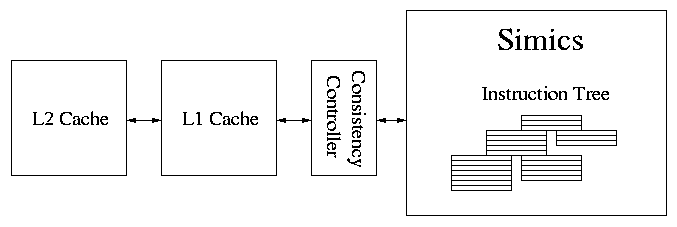

Figure 3. Consistency Controller


Note: In previous versions of Simics, the consistency controller was responsible for keeping program order consistency. This is now performed by the LSQ so no consistency controller is needed to run one processor systems.

When simulating multi-processors systems with Simics MAI, you may want to apply a stronger consistency model then the one the LSQ is providing. The consistency controller module provides some default models.

The consistency controller can be controlled through attributes (setting the an attribute to 0 will imply no constraint):

load-load
if set to non-zero loads are issued in program order
load-store
if set to non-zero program order is maintained for stores following loads
store-load
if set to non-zero program order is maintained for loads following stores
store-store
if set to non-zero stores are issued in program order
prefetch
prefetching (see explanations below)

Instructions that issues both loads and stores, e.g. swap instructions, will have both the load and the store status. Thus setting any of the first four attributes will order all such instructions.

The prefetch attribute is orthogonal to all other consistency controller attributes. When not enabled the consistency controller does not issue any memory transaction to the remainder of the memory hierarchy until they are guaranteed to obey the consistency rules. When enabled the prefetch option causes a prefetch to be issued to the rest of the memory hierarchy for all operations where the target address is ready before the consistency controller has guaranteed correctness. As prefetches are nonbinding, it is always correct for any portion of the memory system to ignore them. Note: prefetches are not allowed to stall and they are only sent once for each instruction.

The source code for the consistency controller is available so it is easy to change its behavior in detail. See simics/src/extensions/consistency-controller.
